Code formats and examples for data connections middleware

How middleware works

Data connections link your forms with third-party services like CRM or DMS applications. Because we can’t predict what code format these applications use, you need to write middleware to translate the data OpenForms sends and receives into something your external application can understand.

Data connection middleware highlighted between OpenForms and external applications

This article describes the JSON data that OpenForms can work with. Together with equivalent information about your external application (check its developer documentation for a similar article to this one), you'll have all the information you need to code middleware to translate between the two.

It's important to note that the data OpenForms can send and receive (in the form of JSON objects) is dictated by the version of data connections you are using. From time to time, we release new versions of data connections which recognize additional JSON objects, or change the syntax of field data within those objects. You can choose what version of data connections to use when you create a data connection.






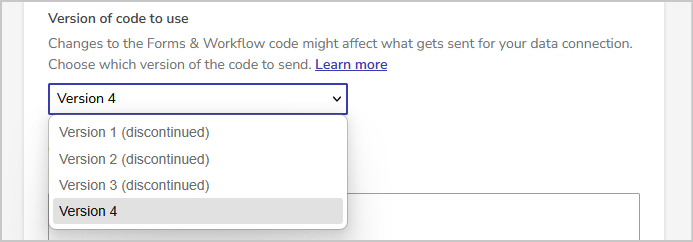

Keep reading to see what JSON objects you can send and receive in each version of data connections, as well as real world examples of those objects in use.

Data connections version 1 JSON objects

Sending information from OpenForms

OpenForms can send the following JSON objects to middleware in data connections version 1.

formVersionId

This object is automatically appended by OpenForms to indicate which form a data connection originates from. This is important as a single data connection can be reused on multiple forms.

sendFields

This is the field information from your form that is being sent to an external application via middleware. Each field is identified by the external ID you have assigned to it, and multiple fields can be sent by separating their external IDs with commas.

receiveFields

This is the field information that you are requesting from an external application via middleware. Each field is identified by the external ID you have assigned to it in your form, and multiple fields can be sent by separating their external IDs with commas.

Example JSON code sent by OpenForms

Let's say you want to create a data connection that sends a respondent’s ID - such as their staff number - to a CRM. This data connection receives back information linked to that ID to prefill other areas of the form - such as a first name, last name, and email address.

For the sake of this example, let’s assume you’ve assigned the following external IDs:

personId

The respondent’s ID number, as entered into the form

first_name

The respondent’s first name, as held in the CRM

last_name

The respondent’s last name, as held in the CRM

email

The respondent’s email address, as held in the CRM

When triggered, the data connection generates the following JSON object and sends it to middleware:

{
  SendFields: {
    personId: "1"
  },
  ReceiveFields: [
    "first_name",
    "last_name",
    "email"
  ],
 FormVersionId: 5521
}

Receiving information from middleware

Openforms can receive the following JSON objects from middleware in data connections version 1.

fields

This is an object that contains information requested from an external application via middleware. The information nested within should match the receiveFields objects sent from OpenForms.

errors

These are any error messages that arise from requests made to your external application via middleware. General errors can be an array containing multiple error strings. Errors specific to a particular field comprise a single error string.

warnings

These are any warning messages that arise from requests made to your external application via middleware. General warnings can be an array containing multiple warning strings. Warnings specific to a particular field comprise a single warning string.

success

These are success messages that arise from requests made to your external application via middleware. These can only apply to individual fields (a general success message would be redundant), and each field can contain a single success string.

referenceId

This is a string of text that is used as an identifier for form submission. For example, this could be the ID of a submission in your CRM application.

status

This is a string of text that represents the status of this form submission. For example this can be "lodged" if a submission has been lodged in your CRM application ready for staff to work on.

Example JSON code received by OpenForms

The code below is an example of a valid response received from middleware, and contains examples of all of the JSON objects listed above. Note that warning and error objects exist as arrays outside of the fields object, and as strings when nested inside it.

{
  fields: {
    age: {
      answer: "24"
    },
    email: {
      answer: "somebody@somewhere.com.au"
    },
    first_name: {
      answer: "John"
    },
    last_name: {
      answer: "Doe"
    },
    gender: {
      answer: "",
      warning: "We didn't have this information in our systems. Please select an appropriate value"
    },
    street_address: {
      answer: "123 Main St, Suburbia, 3000, Australia",
      success: "Street address matched our records"
    },
    state: {
      answer: "Victoria"
    },
    phone: {
      answer: "",
      error: "Phone number was not found. Please enter your phone number"
    },
    favouriteFruit: {
      listItems: [
        { text: "Apples", value: "Apples" },
        { text: "Oranges", value: "Oranges" }
      ]
    }
  },
  warnings: [ "Warning message 1", "Warning message 2" ],
  errors: [ "Error message 1", "Error message 2" ],
  referenceId: "239898",
  status: "Submitted for processing"
}

Data connections version 2 JSON objects

Sending information from OpenForms

OpenForms can send the following objects to middleware in data connections version 2.

In addition to adding new JSON objects, we’ve changed the names of some objects that OpenForms can recognize in version 2 of data connections . This means in some cases, middleware written for version 1 of data connections will not work with subsequent versions.

formId

This object is automatically appended by OpenForms to indicate which form a data connection originates from. This identifier is unique to each form, but does not identify form versions.

formVersionId

This object is automatically appended by OpenForms to indicate which form version a data connection originates from. This identifier is unique to each version of a form.

formVersionNumber

This object is automatically appended by OpenForms to indicate which version of a form a data connection originates from.

This number is not unique across forms (multiple forms can have a formVersionNumber of “2” for example), but read together with the formId, can identify individual forms and versions.

externalRespondentId

This object is an identifier (such as a staff ID) that originates outside of OpenForms.

This object can be populated in a variety of ways. It can be entered into a form field, requested from an external application, or appended to a URL or form link (see an example below of the URL method).

responseReferenceId

This object is automatically appended by OpenForms, and is used to identify a particular response within OpenForms. Each time a respondent opens a form, a unique responseReferenceId is assigned.

dataConnectionId

This object is automatically appended by OpenForms, indicating which data connection is being used for a particular data transfer. Each data connection is given a unique ID.

sourceType

This object is automatically appended by OpenForms and identifies which part of a form a data connection is triggered from. These may be a field, a section, the end of a form, or the beginning of a form.



When the same data connection is used multiple times in a form, triggering across multiple fields or sections, sourceType and sourceElementId objects can be used together to determine which part of a form a particular data connection instance is triggering from.

sourceElementId

This object is automatically appended by OpenForms and identifies the specific element of a form that a data connection is triggered from (for example, the third field of a section, or the second section of a form).

Together with the sourceType object, this can be used to identify where individual instances of multiple-use data connections are triggered from.

externalId

This object identifies a unique item in an external application (for example, a particular parking infringement or animal registration).

In data connections version 1, this object was named "referenceId."



externalStatus

This object identifies the status of a particular item in an external application (for example, whether a fine is "paid" or "unpaid.") OpenForms can receive and update statuses (for example, changing a fine from "unpaid" to "paid" upon completion of a payment).
In data connections version 1, this object was named "status."

callCounter

This object is automatically appended by OpenForms each time a data connection is triggered from a particular location in a form.

This information can be used a number of ways - for example, to provide analytics data, to limit data connection requests, or to prevent duplication of data when the same data connection is triggered multiple times.

sendFields

This is the field information from your form that is being sent to an external application. Each field is identified by the external ID you have assigned to it, and multiple fields can be sent by separating their external IDs with commas. See Send and receive fields for more information.

receiveFields

This is the field information that you are requesting from an external application. Each field is identified by the external ID you have assigned to it in your form, and multiple fields can be sent by separating their external IDs with commas. See Send and receive fields for more information.

Example JSON code sent by OpenForms

Let’s say you’ve created a car maintenance form that let’s respondents track basic maintenance tasks, based on oil and tyre change information held in a CRM.

For the sake of this example, let’s assume you’ve assigned the following external IDs:

LicensePlate

The car’s license plate number, as entered into the form

CarModel

The car’s model, as held in the CRM

lastTyreReplacementDate

The date of the car’s last tyre change, as held in the CRM

lastOilChange

The date of the car’s last oil change, as held in the CRM

Let’s also say that this form is embedded into a website that users have to log into. When they click through to this form, the website appends their identity - in the form of an email address - to the form’s URL, like so:

https://localhost:44386/Form/6ad39b10-b984-4422-9df5-ccaeab24eef2?externalRespondentId=frankknight@pointrussell.com

When triggered, the data connection generates the following JSON object and sends it to middleware:

{
    "SendFields": {
    "LicensePlate": "Vic012"
    },
    "FormVersionId": 3096,
    "ReceiveFields": [
    "carModel",
    "lastTireReplacementDate",
    "lastOilReplacementDate"
    ],
    "FormId": 4066,
    "FormVersionNumber": 9,
    "ResponseReferenceId": "d4124407-f816-4df8-8a5a-7991e3aeee2d",
    "ExternalId": null,
    "ExternalStatus": null,
    "ExternalRespondentId": "frankknight@pointrussell.com",
    "SourceType": 3,
    "SourceElementId": "58599",
    "DataConnectionId": 10,
    "CallCounter": 1
}

In this example there’s a difference between the first call made to the CRM, and subsequent calls. The first time this data connection is triggered, the externalId and externalStatus objects are "null", because this information is held in the CRM, not the form. In subsequent calls, assuming this data is provided the first time the CRM is queried, those objects will contain data.

Like so:

{
    "SendFields": {
    "LicensePlate": "Vic012"
    },
    "FormVersionId": 3096,
    "ReceiveFields": [
    "carModel",
    "lastTireReplacementDate",
    "lastOilReplacementDate"
    ],
    "FormId": 4066,
    "FormVersionNumber": 9,
    "ResponseReferenceId": "aa9507ad-e6e7-4e76-95cb-0ffb2ed36df9",
    "ExternalId": "car-222",
    "ExternalStatus": "broken",
    "ExternalRespondentId": "frankknight@pointrussel.com",
    "SourceType": 3,
    "SourceElementId": "58599",
    "DataConnectionId": 10,
    "CallCounter": 2
}

Receiving information from middleware

Openforms can receive the following JSON objects from middleware in data connections version 2.

fields

This is an object that contains information requested from an external application via middleware. The information nested within should match the “ReceiveFields” objects sent from OpenForms.

errors

These are any error messages that arise from requests made to your external application via middleware. General errors can be an array containing multiple error strings. Errors specific to a particular field comprise a single error string.

warnings

These are any warning messages that arise from requests made to your external application via middleware. General warnings can be an array containing multiple warning strings. Warnings specific to a particular field comprise a single warning string.

success

These are success messages that arise from requests made to your external application via middleware. These can only apply to individual fields (a general success message would be redundant), and each field can contain a single success string.

externalId

This object identifies a unique item in an external application (for example, a particular parking infringement or animal registration).
In data connections version 1, this object was named "referenceId."

externalStatus

This is a string of text that represents the status of this form submission. For example this might be "lodged" if a submission has been lodged in your CRM application ready for staff to work on.
In data connections version 1, this object was named "status."

externalRespondentId

This object is used to identify a user within a system that is not OpenForms, such as a CRM or DMS.

Example JSON Code Received by OpenForms

The code below is a sample of a valid response our car maintenance form may receive from middleware, and contains all of the JSON objects that data connections version 2 can understand.

As with data connections version 1, warning and error objects exist as arrays outside of the fields object, and as strings when nested inside it.

{
  "externalId": "car-222",
  "externalStatus": "dueForService",
  "externalRespondentId": "frankknight@pointrussel.com",
  "fields": {
    "carModel": {
      "answer": "Toyota Corolla",
      "warning": "This model has a faulty airbag, please check with the manufacturer if your car is affected"
    },
    "lastOilReplacementDate": {
      "answer": "2 weeks ago",
      "success": "You just changed your oil. This should be fine for another 11 months"
    },
    "lastTireReplacementDate": {
      "answer": "3 years ago",
      "error": "You should change your tyres"
    }
  },
  "warnings": [
    "Your car was last serviced 2 years ago",
  ],
}

Data connections version 3 JSON objects

Data connections version 3 uses the exact same JSON objects as data connections version 2, but contains an additional send field - transactionID - and updated send field syntax. For more information on field syntax, see Send and receive fields

Send and receive fields

Send fields

The following form fields can be sent in each version of data connections. Note that the send field syntax has changed between versions one and two, and version 3 of data connections, so you may need to update your middleware when moving to a new version.

Send field Syntax
(Version 1 and 2)
Syntax
(Version 3)
Text
<field answer value>
{
     value: <field answer value> }
Number
<field answer value>
{
     value: <field answer value>
}
Dropdown
<field answer value>
{
     selectedValue: <field answer value>

Checkbox
[
     <value of checked item>,
]
{
selectedValues: [
<value of checked item>,
]
}
Radio button
<field answer value>
{
selectedValue: <field answer value>
}
Date
<field answer value>
{
     selectedDate: <field answer value>
}
Email
<field answer value>
{
     value: <field answer value>
}
Rank
[
     {
"label": <rank label>,
"rank": <rank>
},
]

{
selectedValues: [
{
label: <rank label>,
value: <rank>
},
]
}
File Upload
[
{
id: <file identifier>,
name: <file name>
},

{
     files: [
{
id: <file identifier>,
name: <file name>,
isDeleted: <if the file was deleted>
},
]
}
Calculation
<field answer value>
{
value: <field answer value>
}
Signature
{
method: <signature type>,
name: <signature name>,
file: {
id: <file identifier>,
name: <file name>
}
}
{
type: <signature type>,
name: <signature name>,
file: {
id: <file identifier>,
name: <file name>,
isDeleted: <if the file was deleted>
}
}
Location
{
    address: <full address>,
latLng: {
lat: <latitude>,
long: <longitude>,
}
}
Payment
{
paymentAmount: <payment amount>
}
{
     paymentAmount: <payment amount>
transactionId: <transation ID from payment gateway>
}
Radio Matrix
[
{
label: <option label>,
value: <option value>
},
]
{
selectedValues: [
{
label: <option label>,
value: <option value>
},
] }
Checkbox Matrix
[
{
label: <option label>,
value: [
<option value>,
]
},
]
{
selectedValues: [
{
label: <option label>,
values: [
<option value>,
]
},
]
}
Content
<field answer value>
{
content: <video embed code>
}
{
url: <url to the image>,
altText: <alternative text for the image>
}
Video
<video embed code>
{
content: <video embed code>
}

Receive fields

Receive fields are consistent across all versions of Data Connections.

Receive Field Syntax Notes
Text
{
answer: <field answer value>,
success: <optional, success string>,
warning: <optional, warning string>,
error: <optional, error string>
}
  • To return multiple values that will be presented in a list for the form user to choose from, separate the values with \uE04D
Number
Date
Email
Payment
Content
Video
{
answer: <field answer value>,
altText: <optional, image alt text>,
success: <optional, success string>,
warning: <optional, warning string>,
error: <optional, error string>
}

Dropdown
{
     answer: <field answer value>
listItems: [
{
text: <option text>,
value: <option value>
},
],
success: <optional, success string>,
warning: <optional, warning string>,
error: <optional, error string>
}
  • To check multiple values, separate values in the answer with a comma (,)
  • To rank multiple values, separate the values in the answer with a pipe (|)
Checkbox
Radio button
Rank
